Filters Component
Introduction
The filters component is a technical component which cannot be used in the
Lightning app builder.
Instead other components are using this
component for filtering list views.
Where can this Component be Used?
The filters component is used in the following components:

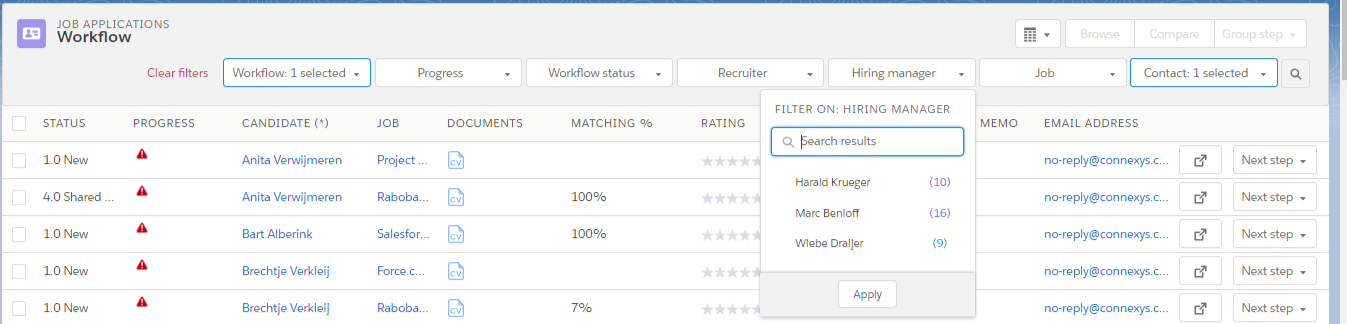

Workflow
List component

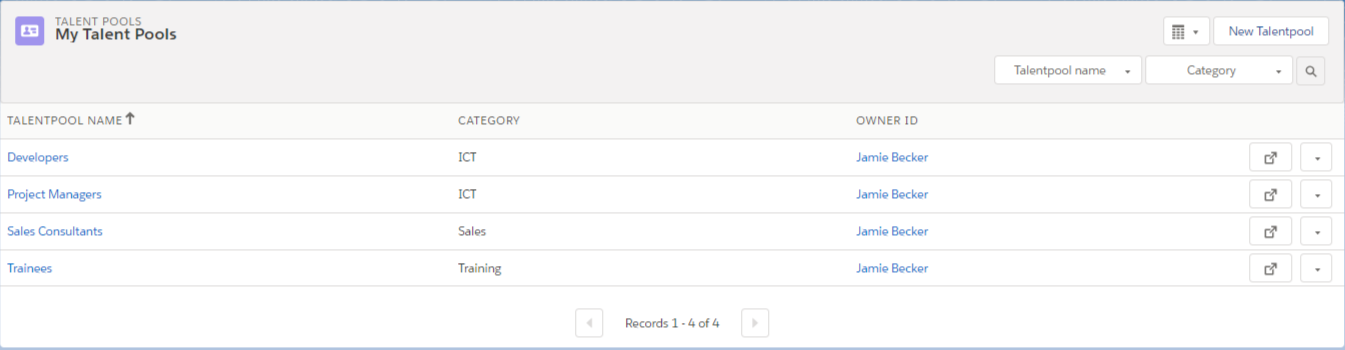

Talentpools tab

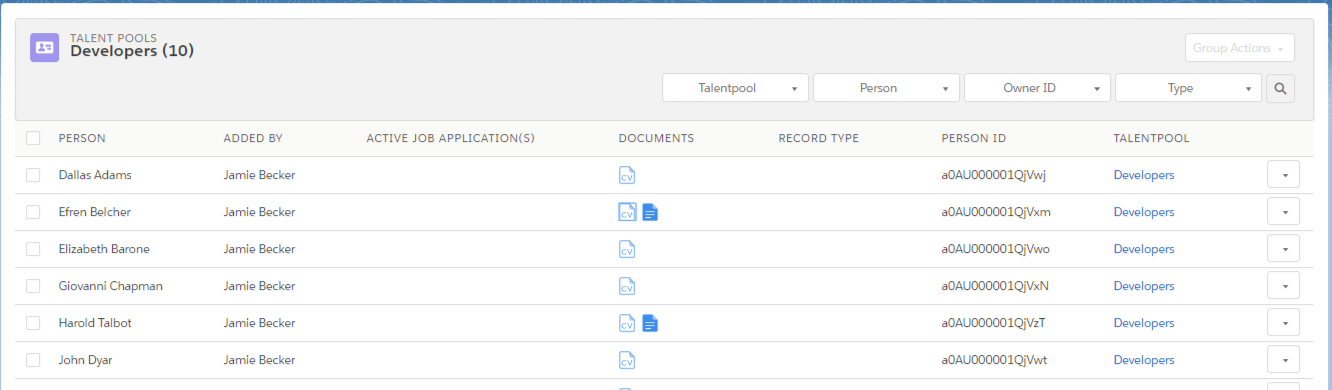

Talentpools detail page
How to Configure the Component?
The filters component can be configured when you add the list component to a Lightning page in the Lightning app builder:
Filters
You have the option to add one or more filters to the records shown in the list component. In case you want to use more filters, you should separate them with comma's.
To add a filter you need to add the field you want to filter on first. You can also add filters on parent objects. by using the Fieldname__r.ParentObjectFieldname__c notation.
Subsequently you need to add an operator. Possible operators are:
EQ --> Equals
NE --> Not equals
GT --> Greater then
GE
--> Greater then or equal to
LT --> Lower then
LE -->
Lower then or equal to
ISNULL --> Is empty
NOTNULL --> Is
not empty
VALUEIN --> Field value is in specified list of
strings
VALUENOTIN --> Field value is not in specified list
of strings
Finally you need to add the value. For String values (Text values) you need to put the value inside single quotes. For integer or boolean fields this is not needed.
Operator | Example |
---|---|
EQ | |
NE | |
GT | |
GE | Number_of_job_applications__c GE 2 |
LT | Number_of_job_applications__c LT 2 |
LE | Number_of_job_applications__c LE 1 |
ISNULL | Last_name__c ISNULL |
NOTNULL | Last_name__c ISNOTNULL |
VALUEIN | Status__c VALUEIN ('Open','Concept') |
VALUENOTIN | Status__c VALUENOTIN ('Open','Concept') |

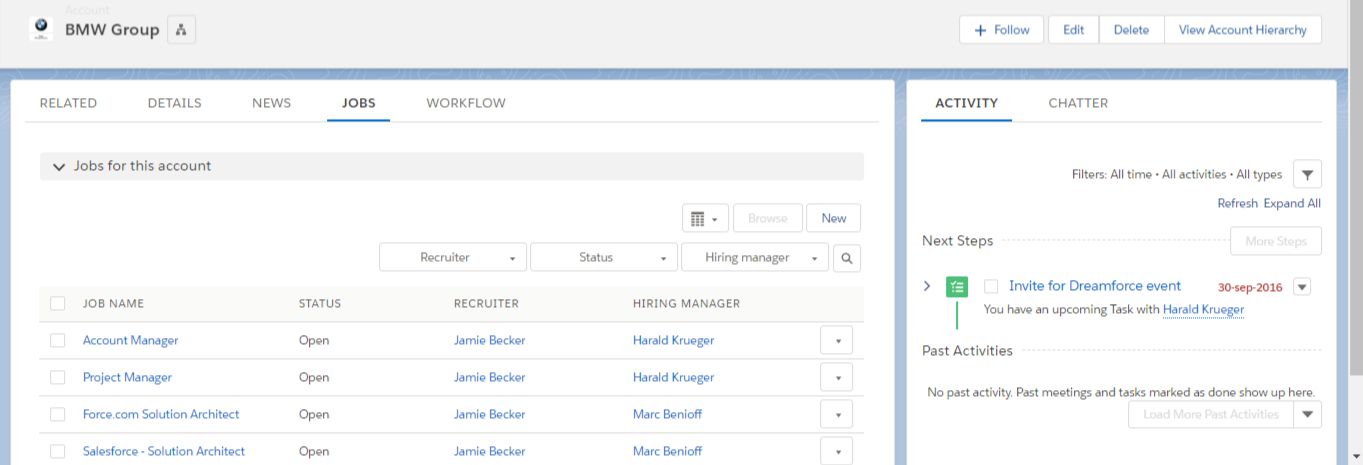

Often the list component is used on a record detail page and the data shown in the list component should be filtered on the current record ID.
This is possible by using the variable recordId. Example:
Position__c EQ ('{recordId}')
Filters logic
You can also add multiple filters. For example
the recruiter of the job must be equal to the contact record or the
hiringmanager must be equal to the contact record.
In this case
you should specify the following two filters (comma separated):
Position__r.Hiringmanager__c
EQ ('{recordId}'),Position__r.Hiringmanager__c EQ ('{recordId}')
The
filters logic should then contain the logic between the two filters:
{A}
OR {B}
Show filters or not
You can choose to show the filter
options or to hide them.
Fieldset used for filters
You can choose which filters you
want to show above the table. You can do this by creating a fieldset on
the job application object and add the fields you want to allow filtering
on to this fieldset. Then add the API name of the fieldset to this
setting.
